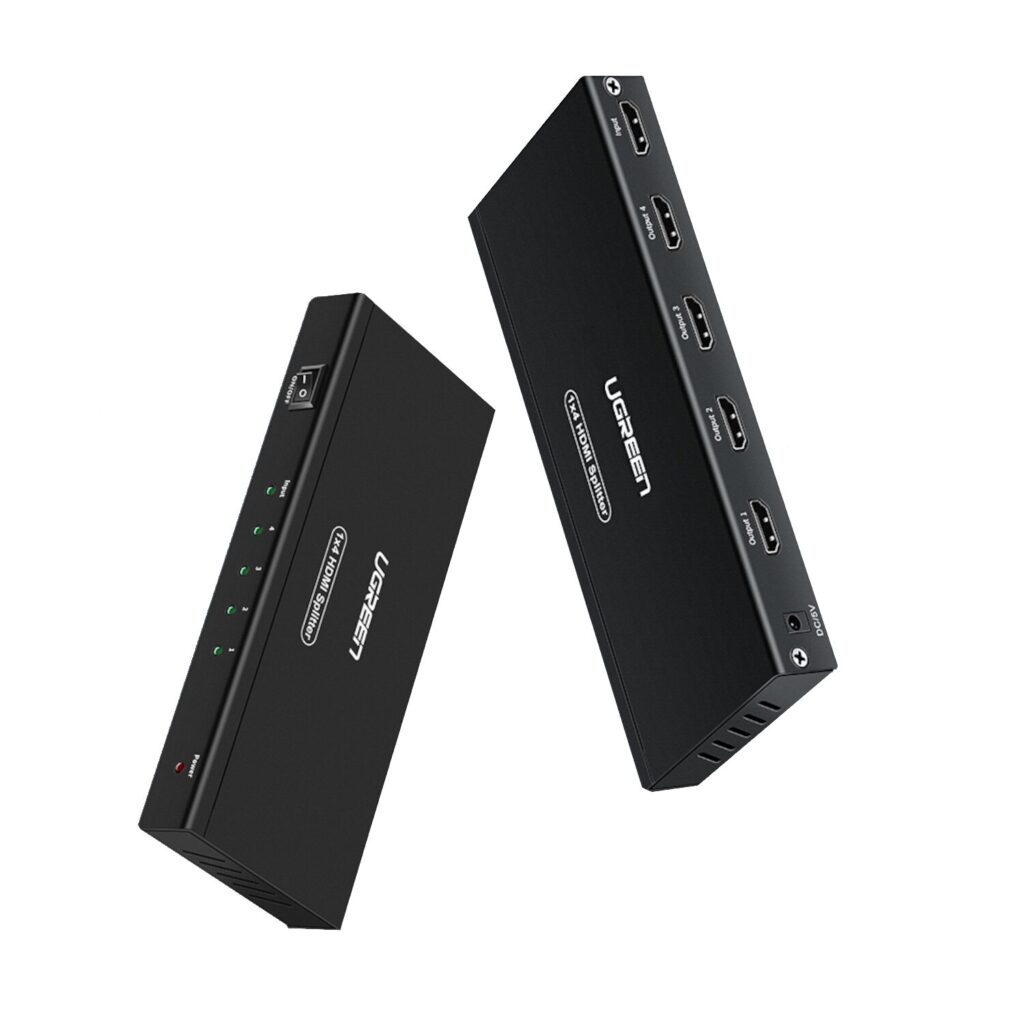

The UGREEN HDMI 1×4 Splitter is a high-performance video distribution device designed to seamlessly transmit a single HDMI input to up to four output displays. Whether you need to expand your viewing experience across multiple screens for presentations, gaming setups, or digital signage, this splitter delivers high-quality video output with minimal signal loss.

With support for 4K UHD resolution at 30Hz and 3D compatibility, this UGREEN HDMI 1×4 Splitter ensures stunning picture clarity, making it ideal for professional and entertainment applications. Engineered with HDMI 1.4 technology and a built-in ITE 6661 chip, you’re guaranteed stable transmission and broad compatibility with various HDMI-enabled devices, including computers, gaming consoles, HDTVs, projectors, and more.

The UGREEN HDMI 1×4 Splitter is built for durability, featuring an aluminium alloy casing that enhances heat dissipation and longevity. Plug-and-play functionality ensures a hassle-free setup without the need for additional drivers or software. Additionally, its long-distance transmission capability supports up to 40m at 1080p resolution, making it a reliable choice for both home and commercial use.

FEATURES:

• Plug & play convenience
• Simultaneous HDMI display on four screens
• Sync audio and video
• 4K@30Hz Ultra HD & 3D support
• Compatible with all HDMI-supported devices
• 40m long-distance signal transmission at 1080p and 20m at 4K
• Premium durable aluminium alloy case

SPECIFICATIONS:

• HDMI Version: 1.4
• Chip: ITE6661
• Supported Resolutions: 4K @ 30Hz, 1080p, 3D, HDCP
• Input: 1x HDMI port
• Output: 4x HDMI ports
• Pixel formats: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Audio formats: DTS/DTS-HD/Dolby TrueHD/Dolby AC-3/LPCM7.1/DSD/HD(HBR)
• Bandwidth: 340MHz, transfer speeds up to 10.2Gbps
• Maximum Transmission Distance:
  • 40m at 1080p (using HDMI cable)
  • 20m at 4K @ 30Hz (24AWG cable)
• Power Supply: DC 5V/1A (adapter included)
• Function: CEC-capable(Input/Output 1)/Cascade/EDID
• Build Material: Aluminium alloy
• Product Dimensions: 10.6 x 5.4 x 2.1 cm

WHAT’S IN THE BOX:

• UGREEN HDMI 1×4 Splitter – 4K UHD, 3D Support x1
• Power Adapter x1
• User Manual x1
