The PRO series enhances user productivity by providing an efficient and effective working experience. The PRO series motherboards offer stable functionality and high-quality assembly. They not only optimise professional workflows but also minimise troubleshooting and ensure longevity.

The MSI Lightning Gen 4 PCI-E is the most advanced and high-speed PCI-E data transfer solution available. It offers an impressive 64GB/s of transfer bandwidth, which is twice as fast as its previous generation. PCIe 4.0 is compatible with both older and newer specifications, allowing for seamless integration and support. Our motherboards are designed with steel Armour to optimise performance and ensure they can support the weight of heavy graphics cards.

MSI motherboards offer a wide range of convenient and intelligent designs for DIY users. They provide numerous system tuning and troubleshooting tools that allow you to maximise your system’s performance and meet the needs of even the most demanding tweakers. Installing your own motherboard is made easy and hassle-free with this method. FROZR AI Cooling enables you to monitor the temperatures of your CPU and GPU. It then automatically adjusts the fan speed of your system fans to an appropriate level using the MSI AI Engine.

The MSI Pro Series motherboards are specifically designed to meet the needs of professional workflows. Enhance your listening experience and indulge in exceptional sound quality. In addition, we have extensive experience in developing user-friendly tools that improve performance. Rest assured, we offer only the finest quality applications for your use. The wide range of features allows you to customise your system for optimal performance and reliability.

FEATURES:

Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Core Boost: With a premium layout and digital power design to support more cores
Memory Boost: Advanced technology to deliver pure data signals for the best performance
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio-grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance

SPECIFICATIONS:

Socket: LGA 1700
CPU (Max Support): Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Chipset: Intel® B760 Chipset
DDR4 Memory: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Memory Channel: Dual
DIMM Slots: 2
Max Memory (GB): 64
PCI-E x16: 1
PCI-E x1: 1
SATA6G: 4
M.2 Slot: 1
RAID: 0/1/5/10
TPM Header: 1
LAN: Realtek® RTL8111H Gigabit LAN
USB 3.2 ports (Front): 2(Gen 1, Type A)
USB 3.2 ports (Rear): 2(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 4
Serial Ports (Front): 1
Audio ports (Rear): Realtek® ALC897 Codec
VGA: 1
HDMI: 1
DirectX: 12
Form Factor: mATX
Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
Product Dimensions: 20 x 23.6 cm

WHAT’S IN THE BOX:

MSI PRO B760M-E Intel 1700 M-ATX Motherboard – Black x1
I/O Shield x1
SATA cables x1
Driver DVD x1
EZ M.2 screw x1
Quick Install Guide x1

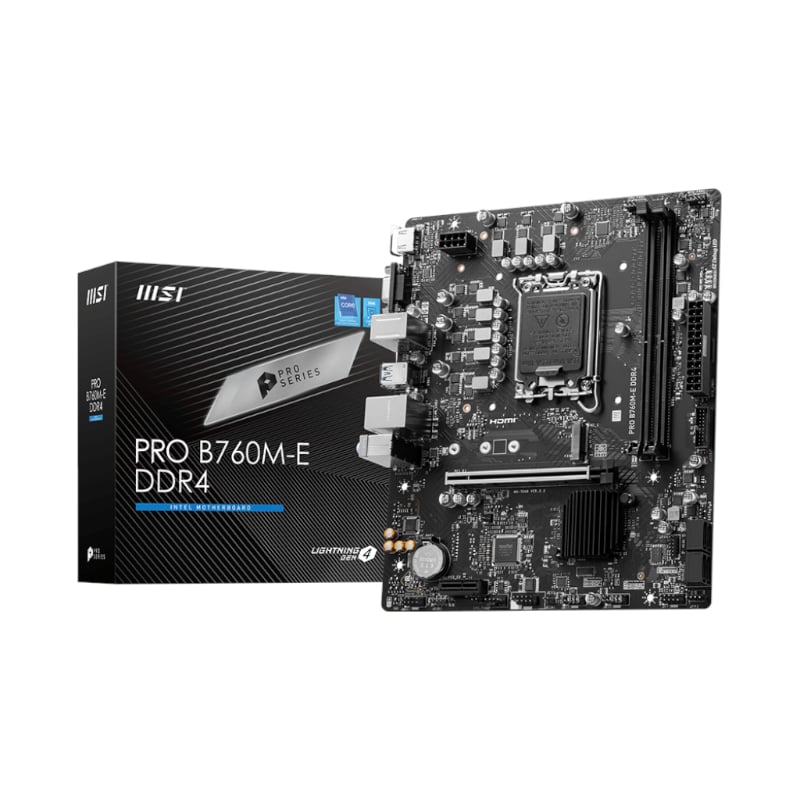

MSI PRO B760M-E DDR4 Intel LGA1700 mATX Motherboard
