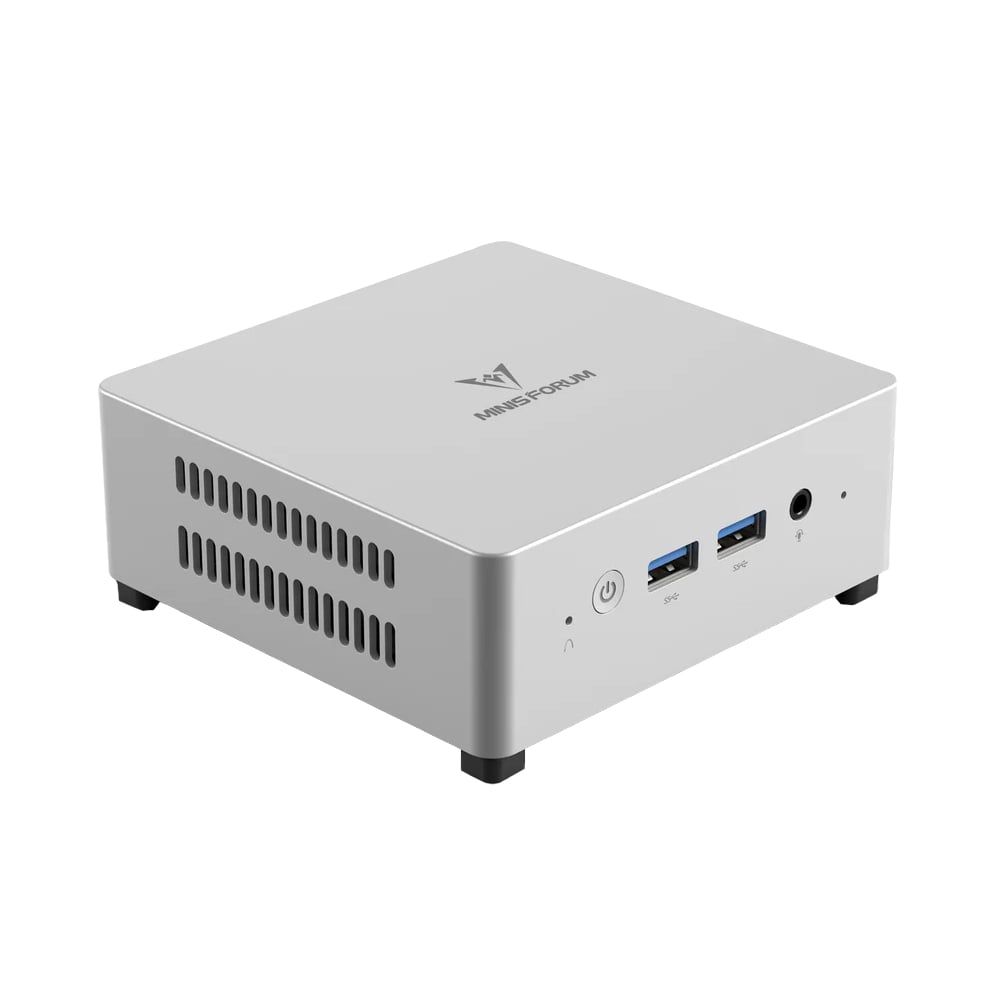

The MinisForum Venus Series Barebone Mini PC is the next step in performance in a small form factor size. It features a compact design at only 12.7 x 12.7 x 5.4 cm in size, making it ideal to fit into any small space or behind monitors for a clutter-free desk space, it’s also ideal for when not a lot of desk space is available. These versatile mini PCs come with a reliable Intel® N100 Processor with UHD Graphics to ensure every task is completed on time. They also support DDR4 SODIMM memory with 1 slot to expand your memory as well as support for a PCIe 4.0 M.2 2280 SSD.

The Venus Series also supports up to 3 displays thanks to its HDMI, DisplayPort, and USB Type-C output ports. For connectivity, it supports onboard Wi-Fi and Bluetooth 5.1. It also comes with a 3.5mm audio jack for speakers or headphones. The MinisForum Venus Series is ideal for those looking for something compact yet powerful for various business applications, from home media servers to call centres or point-of-sale machines.

FEATURES:

• Small Form Factor Mini PC
• Intel® N100 Processor
• 4 Cores | 4 Threads | Up to 3.40GHz
• Intel UHD Graphics
• Dual DDR4 SODIMM slots x 1
• Onboard Intel® Wireless-AC 9560 Wi-Fi connection
• Triple display support with HDMI, DisplayPort, and USB Type-C

SPECIFICATIONS:

• Processor: Intel® N100 Processor , 4 Cores/4 Threads(6M Cache, up to 3.40 GHz
• GPU: Intel® UHD Graphics
• Memory: DDR4 Single Channel (SODIMM slot, up to 3200Mhz, Max 16GB)
• Storage: M.2 2280 PCIe3.0 SSD ×1(PCIe 3.0 ×2)
• Storage Expansion:
  • TF Card Slot ×1
  • 2.5 inch SATA3.0 HDD Slot ×1
• Wireless Connectivity: Onboard Intel® Wireless-AC 9560 (Wi-Fi 5, Bluetooth 5.1)
• Video Output: HDMI 2.0 ×1, USB Type-C ×1, DisplayPort 1.4 ×1
• Audio Output: 3.5mm Audio Jack ×1
• Ports & Buttons:
  • RJ45 1000M Ethernet Port×1
  • USB2.0 Type-A Port ×2(In Back)
  • USB3.2 Gen2 Type-A Port ×2(In Front)
  • USB3.2 Gen2 Type-C ×1(Alt Data DP and PD)
  • HDMI ×1
  • DisplayPort ×1
  • DMIC ×1
  • Audio Jack ×1
  • Clear CMOS ×1
• Power: DC 19V/12V (Adapter Included)
• System: Windows 11
• Product Dimensions: 12.7×12.7×5.4 cm
• Weight: 367g

WHAT’S IN THE BOX:

• MinisForum VENUS Series UN100S N100 Barebone Mini PC – Silver x1
• Power Cable x1
• Operating Instructions x1
