  • Giada F108D Intel N100 1xDDR4 3200 Mhz 2xHDMI
Product on sale

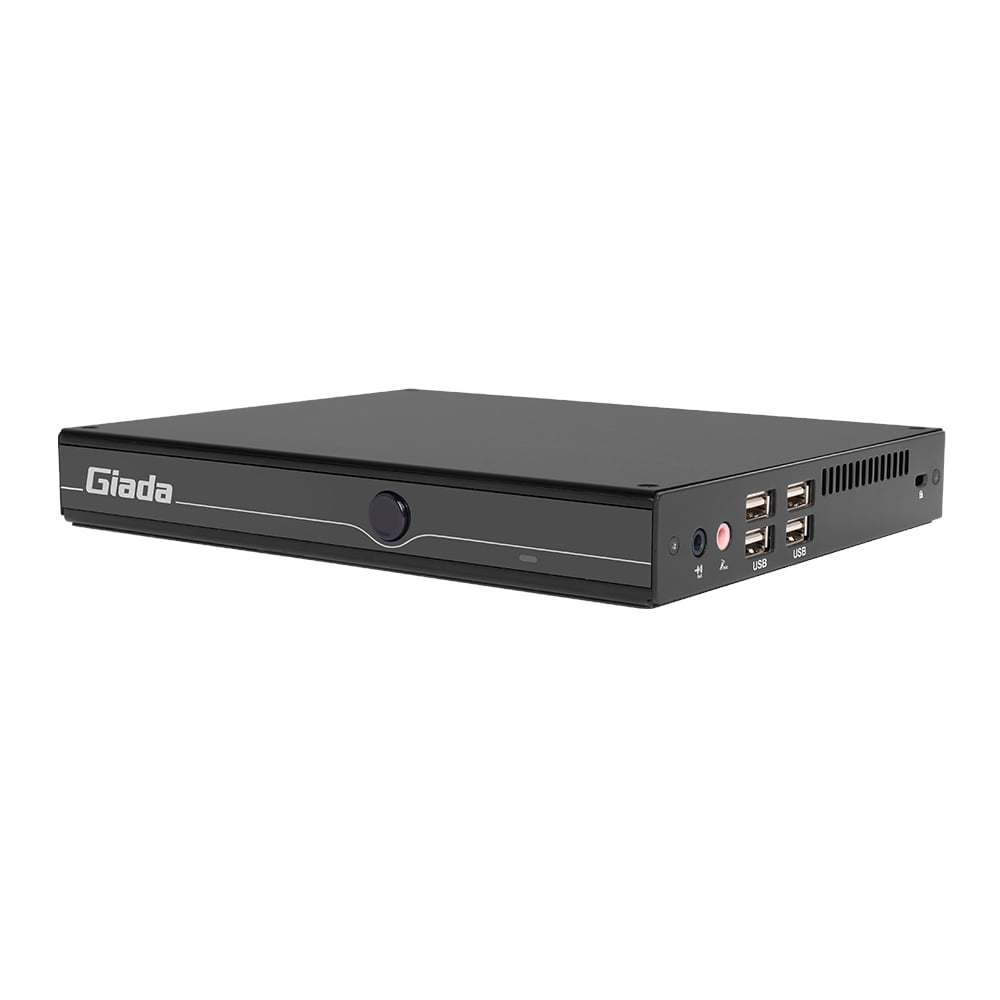

Giada F108D Intel N100 1xDDR4 3200 Mhz 2xHDMI - Image 1

Giada F108D Intel N100 1xDDR4 3200 Mhz 2xHDMI

Original price was: R7599,00.Current price is: R5859,00. Incl VAT
In stock

Buy Now

SKU: F108D-FV-N10040N0G-GIA
Category: ,
Tags: , ,
Brands:

NOTE: The above product is sourced from our suppliers and shipped directly from the supplier once your order is confirmed and payment reflects in our account.

Description:

The Giada F108D Signage Player adopts Intel® Alder Lake-N processors, giving you good performance while featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications. The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can also be easily integrated into vending machines, self-service and check-in kiosks. The digital signage player also comes with built-in Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof.

FEATURES:

  • Intel® Processor N100
  • DDR4 3200MHz memory support
  • Intel UHD onboard graphics
  • Up to 4k resolution support
  • 1x DP and 2x HDMI output
  • Support for Wi-Fi/Bluetooth module
  • Small form factor design

SPECIFICATION:

  • CPU: Intel® Processor N100 (Fanless)
  • Turbo Frequency: 3.40GHz
  • Chipset: SoC
  • Processing Units: 4 Cores
  • TDP: 6W
  • System Memory: Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz
  • Storage: 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
  • Watchdog Timer: Yes
  • Auto Power On: Yes
  • RTC: Set up independently every day, a week as a cycle
  • Remo on: No
  • Power Requirement: DC-IN, 19 V/2.37 A
  • Construction: Metal
  • Operating System: Windows 11 (64bit) /Linux Ubuntu (64bit)
  • Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
  • Certifications: CE, FCC Class B, UKCA
  • Humidity: 95% @ 45°C (non-condensing
  • Network Controller: 2 x Realtek RTL 8111H Gigabit Ethernet
  • Ethernet Interface: 2 x RJ45
  • Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6
  • Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
  • GPU: Intel® UHD Graphics
  • Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0
  • Display Interface: 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz)
  • USB: 2 x USB3.2 Gen2, 4 x USB2.0
  • Serial Port: 2 x RS232
  • Audio: 1 x MIC-IN, 1 x AUDIO-OUT
  • Button: 1 x Power on, 1 x CLR-CMOS
  • Antenna: 2 x Connector for Wi-Fi/BT
  • Product Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

  • Giada F108D Alder Lake-N Book Size Signage Player – Black x1
