The Cudy M3000 AX3000 Dual-Band Wi-Fi 6 Mesh System redefines wireless performance with ultra-fast throughput, robust hardware, and next-generation Wi-Fi 6 technology—designed for uninterrupted connectivity in modern homes, smart offices, and demanding multi-device environments. Supporting speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, the M3000 enables stable 4K streaming, online gaming, video conferencing, and large file transfers across an expansive coverage area.

Powered by a 1.3 GHz dual-core ARM Cortex-A53 processor, with 256 MB DDR3 RAM and 128 MB NAND flash, this system delivers consistent, high-capacity performance even under intensive loads. Five internal antennas with beamforming technology extend wireless range up to 220 metres, intelligently focusing signal strength towards connected devices for greater stability and throughput.

Engineered for scalability, the M3000 supports up to 200 concurrent connections across a mesh-enabled topology. Each unit includes a 2.5G WAN port and a Gigabit LAN port, ensuring ultra-fast wired backhaul or device integration. WPA3 encryption, guest network isolation, and integrated VPN protocols (including WireGuard, OpenVPN, IPsec, PPTP, and L2TP) provide enterprise-grade security for private and public networks alike.

With easy setup via the intuitive Cudy app, real-time network monitoring, and remote management capabilities, the M3000 simplifies complex networking without compromising control or visibility. Whether deploying a reliable solution for high-density smart devices or future-proofing your office network, the Cudy M3000 stands out as a versatile and powerful choice.

FEATURES:

AX3000 dual-band Wi-Fi 6 (2402 Mbps + 574 Mbps)
1.3 GHz dual-core ARM Cortex-A53 processor
Five internal beamforming antennas (up to 220 m range)
Supports up to 200 connected devices
1× 2.5G WAN + 1× Gigabit LAN per unit
WPA3 encryption + multi-protocol VPN support
Seamless mesh roaming and coverage extension
Intuitive mobile app and web interface for configuration
Compatible with TR069, TR098, TR111, TR181 protocols

SPECIFICATIONS:

CPU
CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 256 MB (2 Gbit) DDR3
Wireless
5 GHz Wi-Fi Speed: 2402 Mbps
2.4 GHz Wi-Fi Speed: 574 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 5× Internal
5 GHz Antenna Gain Max: 5.1dBi
2.4 GHz Antenna Gain Max: 4.2dBi
FEM or PA/LNA:
- 5 GHz: 3× Internal
- 2.4 GHz: 2× Internal
Beamforming: True
Range Performance: Max: 220 m
Wall Performance:
- Two wooden walls with a thickness < 10 cm
- One concrete wall with a thickness < 20 cm or two concrete walls with a thickness < 10 cm
Indoor Coverage Reference:
- 2 Pack: 200 m² (2150 sq ft)
- 3 Pack: 270 m² (2900 sq ft)
Interfaces
2.5G RJ45 Ports: 1
Gigabit RJ45 Ports: 1
Ethernet Notes: The 2.5G port is WAN port, the Gigabit port is LAN port
LED:
- System
- Speed/Link/ACT of Ethernet Port
Physical Buttons:
- WPS Button
- Reset Button
Power Input: DC Jack
Power
Power Methods: DC
DC: 12V 1A
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC
Max Power Consumption (W): 11.5W
Idle Power Consumption (W): 4.2W
Reliability
Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃
- Storage Temperature: -40 ℃ ~ 70 ℃
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
Certifications: FCC, CE
Mechanical
Installation: Desktop
Dimension: Φ11 × 15.45 cm
Product Weight: 360 g

WHAT’S IN THE BOX:

Cudy M3000 AX3000 Dual-Band Wi-Fi 6 Mesh System – White x1
Power Adapter x1
Ethernet Cable x1
Installation Guide x1

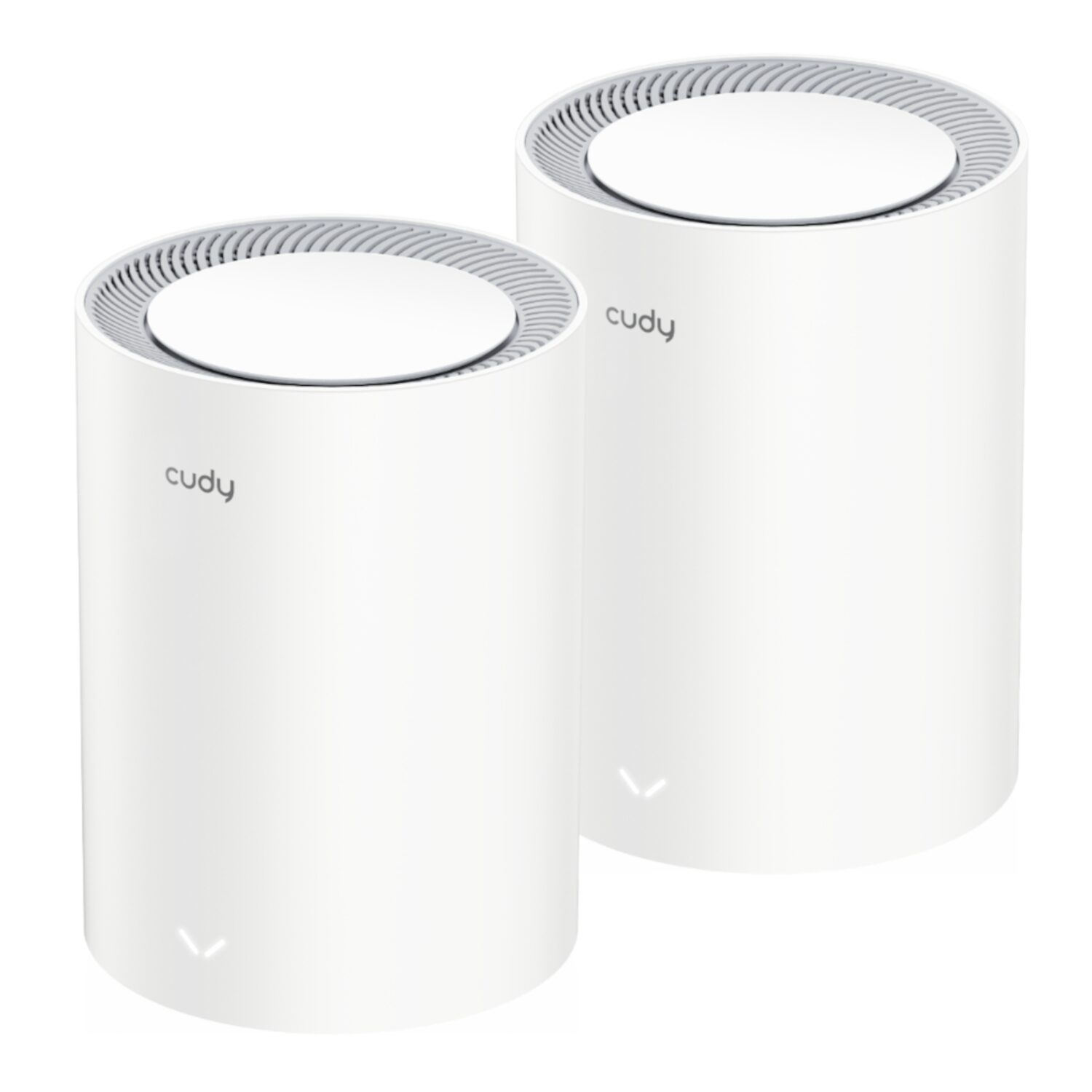

Cudy M3000 AX3000 Dual-Band Wi-Fi 6 Mesh System – White
